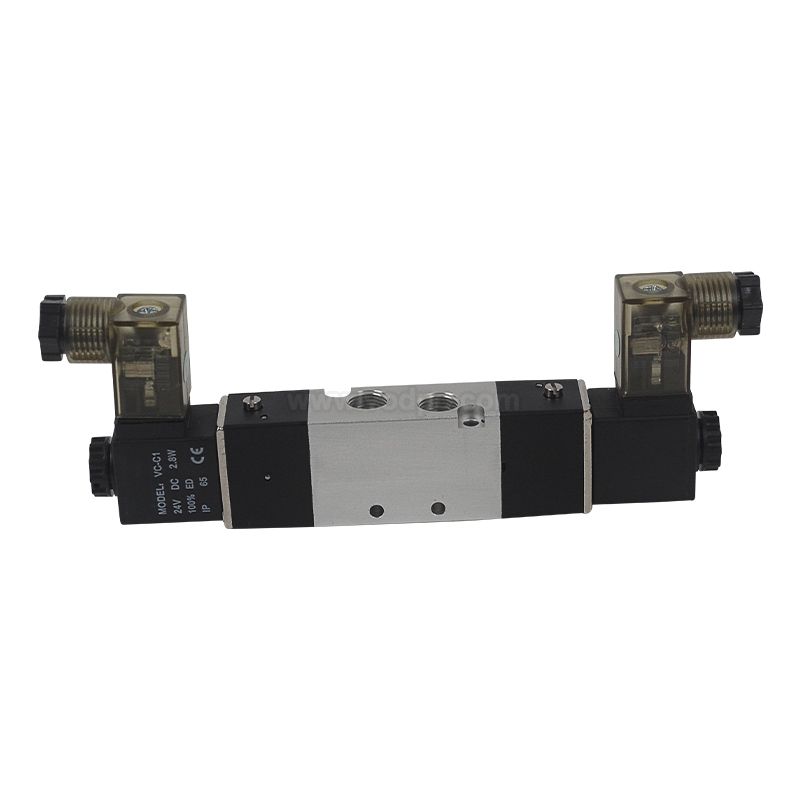

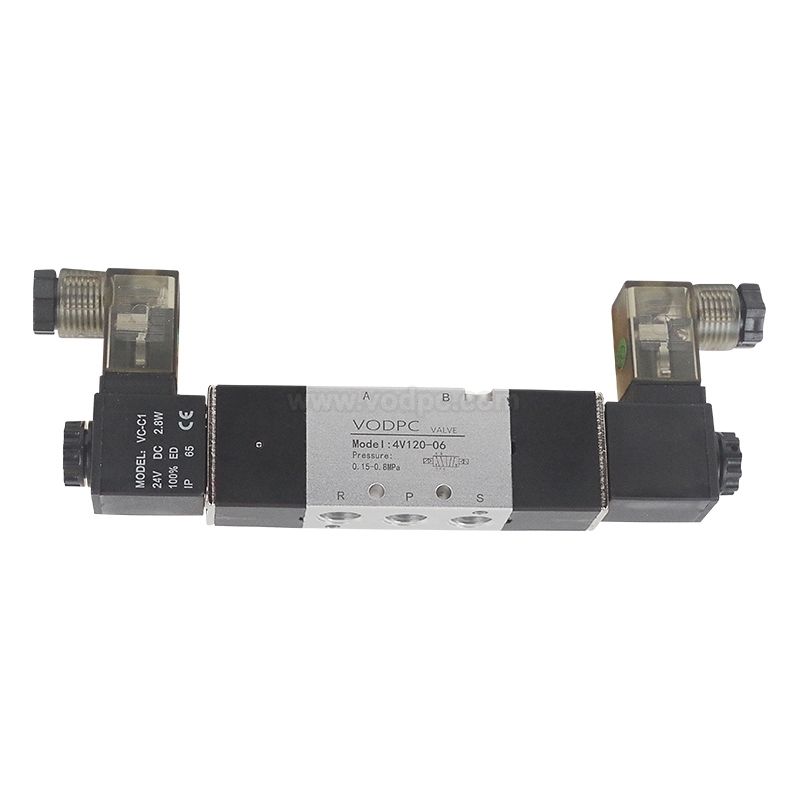

Series 4V Double coil Electronic Control valve for gas

3V / 4V 3A / 4A series of electronic control valve overall profile manufacturing, the use of slot structure to high-precision processing technology to protect product performance, the product is compact, rational design, good commutation, and can be integrated on the floor, occupies a small space, easy maintenance.

  • Model Number:4V120,4V220,4V320-10,4V420-15
  • Colors:
  • Views:1
  •   :

3V / 4V 3A / 4A series of electronic control valve overall profile manufacturing, the use of slot structure to high-precision processing technology to protect product performance, the product is compact, rational design, good commutation, and can be integrated on the floor, occupies a small space, easy maintenance.The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

* 5/2 Way Pneumatic Valve

* 5/3 Way Pneumatic Valve

* 3/2 Way Pneumatic Valve

* 2/2 Way Pneumatic Valve

Pneumatic valves are electrically controlled to direct air flow to sequence operations in pneumatic systems. Pneumatic valves are used to control cylinders, rotary actuators, grippers and other pneumatic devices. Use a manifold to simplify plumbing for a bank of valves. Modular systems even allow networked control of valve groups.

Features:

1.Pilot Drive Mode, internal pilot or external pilot.
2. Highly concentric of the sliding spool and the internal hole make excellent seal and sensitive reaction.
3.Durable design, High quality aluminum alloy body. No need for additional lubrication.

4.Multiple thread type available: G, NPT, PT, BSPP, BSPT.
5.Seal material, HNBR, provide greater thermal stability, broader chemical resistance, and longer service life than a nitrile rubber(NBR).
6.Multiple voltage available, from dc 12V/24V to AC24V/110V/220V. Voltage Tolerance: +10% to -10% applicable voltage.
7.Valves are 100% tested.

Specifications:

Model  4V120-06 / 4V220-06 / 4V220-08 / 4V320-08 / 4V320-10 / 4V420-15
Port size  06:PT1/8, 08:PT1/4, 10:PT3/8, 15:PT1/2
CV  0.67      /    0.78      /     0.89    /     1.39     /    1.68     /     2.79
Type Double Solenoid, Internal Pilot, 5 Way 2 Position
Working Pressure   0.15 - 0.8Mpa (0.15 - 8Bar / 023 -120PSI)
Proof Pressure  1.2Mpa (180PSI)
Working Temperature  -20 -70℃ (-4 - 158℉)
 Activating Time  0.05 sec and below
 Max. Frequency  5 cycles/sec
 Electrical connection  1.DIN Connection  ,2.Wire Leads (Grommet)
Seal (options)  HNBR
Voltage (options)  DC12V 24V / AC24V 36V 110V 220V 380V  ±10%
